Production parameters of our aluminum honeycomb plate

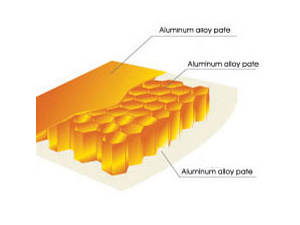

    Aluminum honeycomb plates are composed of two layers of aluminium alloy plates sandwiched with a honeycomb core.
  • We primarily adopt high quality 3003H24 aluminium alloy or 5052AH14 high manganese alloy to produce the faceplates. The faceplate thickness ranges from 0.8mm to 1.5mm, and the faceplates should be PVDF coated.
  • The baseplate thickness ranges from 0.6mm to 1.0mm.
  • The sandwiched layer is comprised of type 3003 hexagonal honeycombs. The aluminium foil, which is used for composing the honeycombs, has a thickness ranging from 0.4mm to 0.6mm, and the foil length ranges from 5mm to 6mm.
  • The total thickness of our aluminum honeycomb plates ranges from 10mm to 25mm.
    This type of honeycomb sandwich construction material is produced under high temperature and high pressure conditions.
Characteristics and applications of aluminum honeycomb plates

The two layers of aluminum alloy plates are surface coated. The faceplate is KYNAR500 coated and the baseplate is coated with polyester paint. Both layers of plates feature high strength and good weather resistance. As a result, our aluminium honeycomb plates also feature light weight, high intensity, high rigidity, good resistance to sound, corrosion and heat, etc.

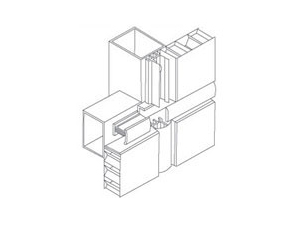

Aluminum honeycomb plates are originally used in aviation and space flight fields. Due to aforementioned characteristics, aluminum honeycomb plates are also extensively used in buildings, vehicles, and billboards, etc. If you are looking for low maintenance cost aluminum plates, don't hesitate to contact us.

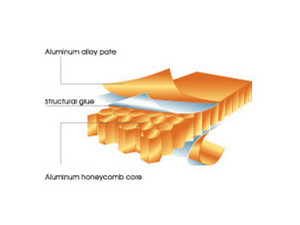

Structural drawing of aluminum honeycomb plate

H: Total thickness of aluminum honeycomb plate
T1: Thickness of aluminum alloy plate (faceplate)
T2: Thickness of aluminum alloy plate (baseplate)
T: Diameter of a honeycomb

Aluminum Honeycomb Plate
Specification and mechanical property of aluminum honeycomb plate
Specification Thickness / H (mm) Faceplate thickness/ T1(mm) Baseplate thickness/ T2(mm) Honeycomb diameter T(mm) Width (mm) Length (mm) Specific gravity (kg/m2) Rigidity (kNm/m2) Section modulus (cg3/m)
M06 6 0.6 0.5 12-19 250-1500 600-4500 4.9 0.71 2.5
M10 10 0.8 0.7 12-19 5.3 2.49 4.5
M15 15 0.8-1.0 0.8 12-19 7.0 7.55 14
M20 20 1.0 0.8 12-19 7.4 13.90 19
M25 25 1.0 0.8 12-19 7.8 22.17 24

Our aluminium honeycomb plate is also customizable.

Performances parameters of aluminum honeycomb plate
Item ASTM Unit 10mm 15mm 20mm
Theoretical weight kg/m2 5.4 5.6 5.75
Tensile strength E8 N/mm2 806 598 455
Endurance E8 N/mm2 531 405 279
Elongation E8 % 1.2 1.4 1.7
Flexural rigidity C393 ×106 N. mm2 8.03 15.4 38.44
Coefficient of elasticity in flexure N/mm2 50000 40600 38.44
Thermal elongation coefficient D696 0.24 0.24 0.24
Thermal conductivity D976 ×10-6 N/℃ 0.23 0.19 0.15
Heat distortion temperature D648 ℃ 200 200 200
Bond strength C297 N/mm2 12 12 12
Flatness Max. deviation: 1mm/M
Flame retardancy Nonflammable, conforming to related fire grading of construction materials
Sound insulation Ranging from 0dB to 3dB. Depending on the installation angle of our aluminium honeycomb plates.

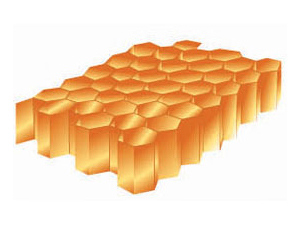

Performance parameters of honeycomb core
The performance of honeycomb cores is vital to the performance of aluminum honeycomb plates.
Specification of honeycomb core mm/mm(kg/m3) Planar compression strength (Mpa) Longitudinal shearing strength (Mpa) Lateral shearing strength (Mpa)
0.04/5(31) 0.66 0.53 0.30
0.04/4(39) 0.98 0.75 0.43
0.05/5(41) 1.07 0.80 0.47
0.04/3(52) 1.60 1.15 0.67
0.05/4(53) 1.65 1.18 0.69
0.05/3(68) 2.50 1.78 1.04
