Nano panel inherits all features of traditional PVDF aluminium composite panel, like antipollution, cauterization resistance, fastness and so on. Meanwhile, we apply nanometer high technology during Nano ACP production. This provides our Nano self-cleaning composite panels with superior self-cleaning performance, antipollution property, acid resistance and alkali resistance. The Nano self cleaning panel is an updated decorative material.
Nano self-cleaning aluminium composite panel has better self-cleaning function comparing with traditional PVDF panel. Usually when aluminum wall panel is used for exterior wall for half year, the surface is polluted badly by the dust and rainwater, especially in some projects use inferior silicone sealant. When the panel is dipped in rainwater for long time, there will be some black marks between the seams which is very difficult to be cleaned. This will badly affect the appearance of the wall. Now the Nano panel self cleaning aluminium composite panel solves this problem.
Request a Quote
In addition, you could write on the surface of panel with ink pen to distinguish if it is original aluminium composite panel. If the mark could be rubbed away easily, it is proved Nano panel.
Application
This Nano self cleaning aluminium composite panel is mainly used in high-grade building walls, luxury hotels, luxury hotel, exhibition centers, airport, gas stations, and other places requiring high air pollution resistance.
Feature
- Economic

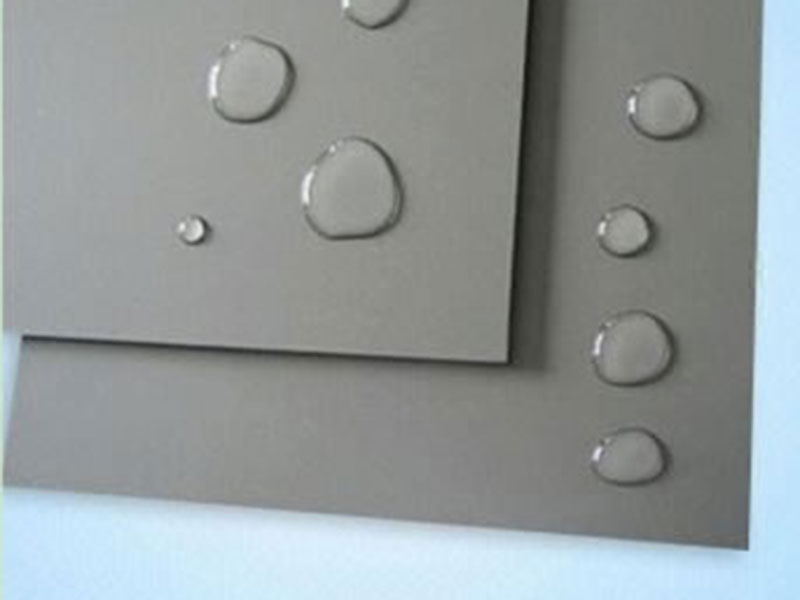

As a result of its low coating tension, the dust is difficult to adhibit on the surface of the panel. It can be easily rushed away by little rain. This could save you a lot of time cost and labor cost for wall panel cleaning.
- Environment protection
Super aging resistance, no coating change, no pollution, anti-acid, anti-alkali, solvent resistance.
- Durable
The Nano aluminium composite panel is more durable, and has advantages like weather resistance, temperature resistance, friction resistance, pollution resistance, and aging resistance comparing with traditional PVDF panel.

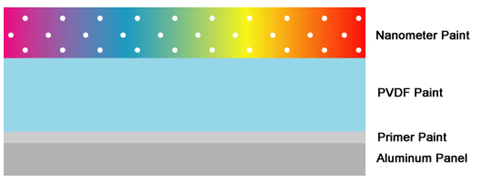

Nano ACP Structure

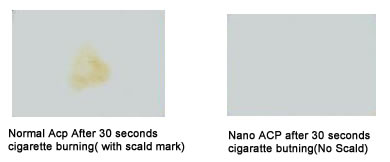

Compare with normal ACP
Nano(PVDF) ACP Parameter
| Testing Item | Standard | Result |
| Unit weight | ASTM D792 | T4mm=5.5kg/m² |
| Thermal expansion | ASTM D696 | 24-28 |
| Thermal deformation temperature | ASTM D648 | 115℃ |
| Thermal conduction | ASTM 976 | 0.102kcal/m.hr℃ |
| Flexural rigidity | ASTM C393 | 14.0*10∧5 |
| Impact resistance | ASTM D732 | 1.640kgf |
| Adhesive strength | ASTM D903 | 0.77kg/mm |
| Flexural elasticity | ASTM D790 | 4032kg/mm² |
| Shear resistance | ASTM D732 | 2.7kgf/mm² |
| Fire propagation | ASTM E84 | QUALIFIED |
| Wind-pressure resistance | ASTM E330 | PASS |
| Properties against water | ASTM E331 | PASS |
If you are looking for eco-friendly building materials, ZWM is your best choice.
As a result of our efforts, we have become one of the leading building material exporters and suppliers in China. Shanghai Jixiang Building Materials Group now has over 50 distributors, and we have created four primary brands, ZWM, Jixiang Jiamei, Jixiang Siji, and Jinmu. You can find our decorative construction materials under these brand names in a wide range of countries, including Russia Saudi Arabia, Iran, India, Indonesia, Singapore, and more.
So, if you are looking for eco-friendly decorative materials for either interior or exterior building decorations, please contact us.
