We primarily produce fluorocarbon coated aluminum veneers. Since there is PVDF contained in fluorocarbon coating material, our fluorocarbon coated aluminium veneer is also called PVDF coated aluminum veneer.
We know that the quality of exterior fluorocarbon coating is vital to the quality of aluminum veneer curtain walls, so we adopt superior quality fluorocarbon coating materials from world leading manufacturers. Our fluorocarbon coating suppliers include PPG, DNT, AKZO, and NIPPON, etc. and they can provide a wide range of coating colors to satisfy our different demands.

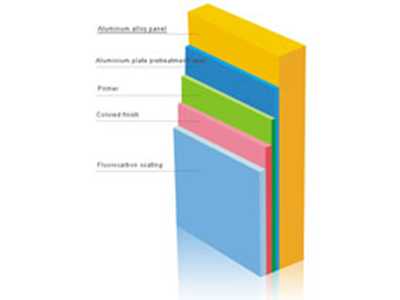

Our aluminum veneer is primarily composed of a faceplate, a reinforced structure, and suspension loops.
Standard veneer thickness: 2.0mm, 2.5mm, 3.0mm
Variety of colors are available.

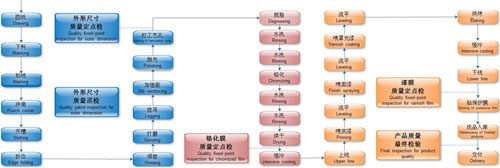

Production flow chart of aluminum veneer
Aluminum veneers are usually chromized before they are fluorocarbon coated. The exterior fluorocarbon coating, which contains PVDF resin, features good corrosion resistance and weather resistance. Hence, our aluminum veneer has long service life and good resistance to acid rain, salt fog, strong UV, and extremely high or low temperatures, etc. Even used in harsh environment conditions, our aluminium veneer will not fade or effloresce easily.
Characteristics of our aluminum veneer
We adopt high quality aluminum alloy from internationally-leading manufacturers as the primary raw material. Hence, our aluminum veneers feature light weight, watertight, high rigidity, and high strength.
This type of incombustible aluminium plate also features good fire resistance.
Our aluminum veneers can be bended into an arc shape or any other shapes, with variety of colors coated on the surface. Thus, our aluminium veneer provides an ideal solution to create beautiful patterns on walls.
Aluminum veneers can also be used in combination with glass curtain walls, to make buildings more elegant and noble.
Due to its durability and dirt resistance, this type of aluminum plate is easy to clean and maintain. It is environmentally friendly.
Fluorocarbon coated
Porcelain fused
Marbleized
Marbleized
Wood grained

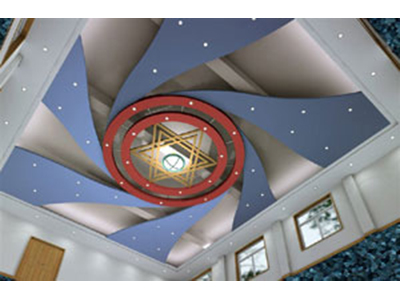

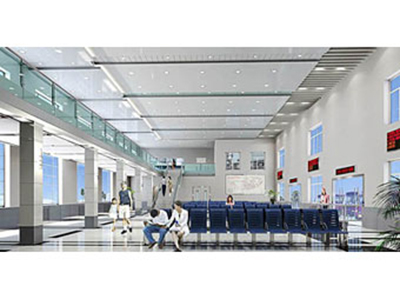

Applications of aluminum veneer
Our aluminum veneers, a kind of decorative building materials, are widely used for decorating both interior and exterior walls of various buildings, overhead walkways, elevators, and advertising boards.
Fluorocarbon coating standard
Testing Item
Technical requirement
Physical dimension
Length and width
≤2000mm, allowable deviation ±1.0mm
>2000mm, allowable deviation ±1.5mm
Diagonal
≤2000mm, allowable deviation ±3.0mm
>2000mm, allowable deviation ±3.0mm
Planeness
Allowable deviation ≤1.5mm/m
Average thickness of dried coating
Second layer coating ≥30μm Third layer caoting≥40μm Fourth layer coating ≥55μm
Fluorocarbon coating
Color difference
No visible chromatic aberration. Computerized color-difference meter should be adopted for inspecting single color coating. △E≤2NBS
Glossiness
Tolerance of limit value ≤±5
Pencil hardness
≥±1H
Adhesive force
Cross cut test, 100/100, 0 level
Max. impact strength (Frontal impact)
50kgf.cm (490N.cm), no crack, no paint stripping
Chemical resistance
Resistance to hydrochloric acid
To drop hydrochloric acid liquid on aluminum veneer surface for 15 minutes continuously, no bubbles produced.
Resistance to nitric acid
Color difference △E≤5NBS
Resistance to motor
Make no difference within 24 hours
Resistance to detergent
No bubbles and no stripping within 72 hours
Corrosion resistance
Resistance to dampness
4,000 hours above GB1740 level 2
Resistance to salt fog
4,000 hours above GB1740 level 2
Weather resistance
Fading
△E≤5NBS when our veneer has been used for 10 years
Efflorescence
GB1766 class 1 when our veneer has been used for 10 years
Glossiness maintenance
≥50% when our aluminium veneer has been used for 10 years
Thickness loss
≤10% when our aluminum veneer has been used for 10 years
(Aluminum panel coated by PVDF) solution list
specification
coating layer
unit
material
2.0(1.85mm)
≥30um
M2
1100H24
2.5(2.35mm)
≥30um
M2
1100H24
3.0(2.85mm)
≥30um
M2
1100H24
The above price is subjected to Changjiang spot price of Aluminum.(Website for searching Changjiang spot price of Aluminum:www.smm.cn)
Coating layer≥40um :+0.7US/㎡,material3003H24:+1.4 US/㎡,material5002H24:+2.5 US/㎡,coated by PE:-2.8 US/㎡
Width≥1300mm:+1.4 US/㎡(exceeding 100mm each).
Bright color: +1.4 US/㎡
Jixiang Building Materials Corp. is a primary aluminum veneer manufacturer and supplier based in China. Since our inception, we have been committed to producing high quality building materials to both national and international customers. Depending on our advanced production technique, manufacturing equipment, and testing instruments, we can produce a variety of high quality construction materials, including aluminium veneers, aluminum honeycomb plates, aluminum composite panels, and aluminum coils, and more.
Due to our focus on quality control, our company has been ISO9001:2000 certified. Presently, our products are well accepted in Russia, Saudi Arabia, Iran, India, Singapore, and Indonesia, and more. If you need any of our construction materials, please contact us directly.
