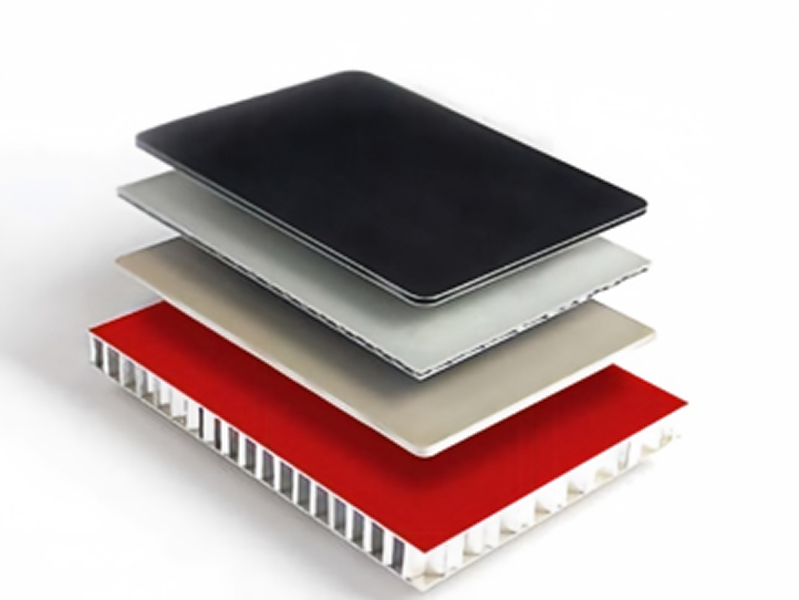

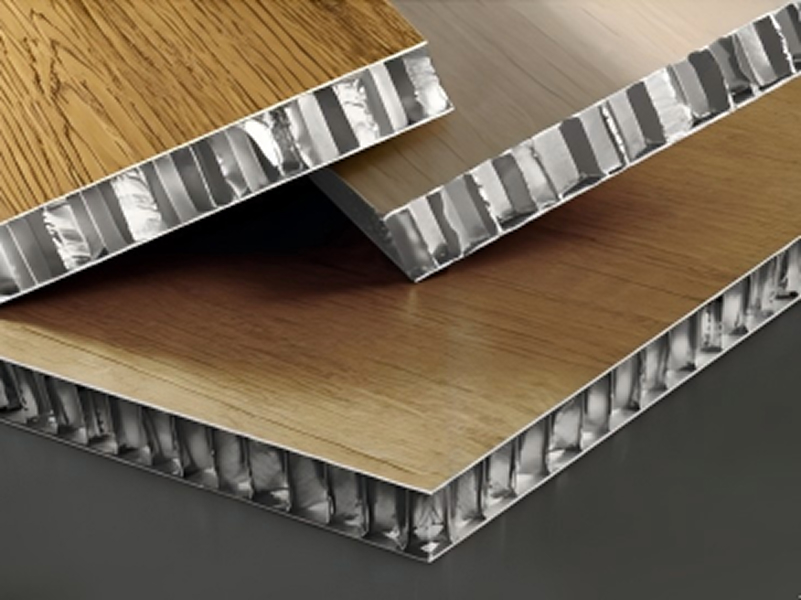

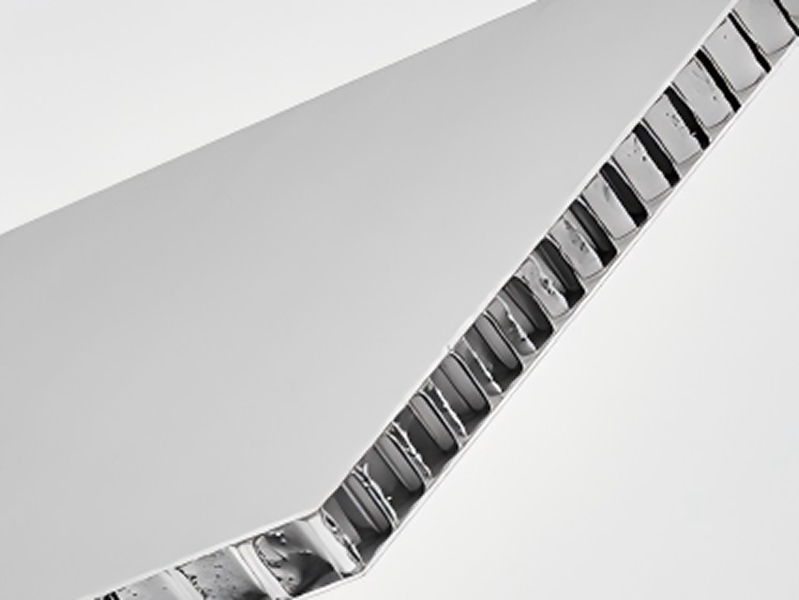

Aluminum honeycomb panel is a lightweight sandwich panel consisting of two aluminum face sheets bonded to an aluminum honeycomb core. The honeycomb structure reduces overall panel weight while providing the rigidity and dimensional stability needed to maintain good surface flatness across larger panel sizes. This combination makes aluminum honeycomb panels well suited to architectural and decorative projects where low weight, flatness, and structural stability are important.

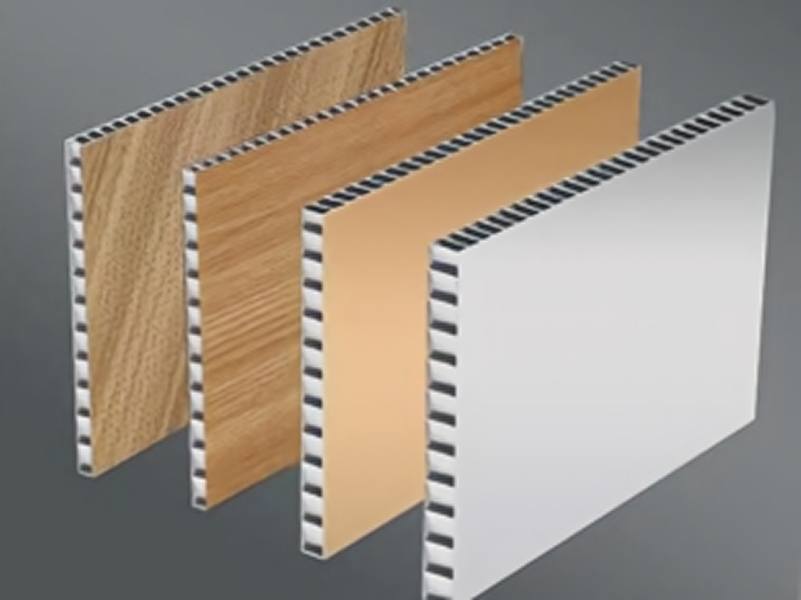

Aluminum honeycomb panels can be used for building facades, curtain wall cladding, interior walls, ceilings, and other architectural applications requiring lightweight metal panels. Panel dimensions, surface colors, and decorative finishes can be selected to meet different project requirements.
| Parameter | |||||
| Panel thickness H (mm) | 25 | 20 | 15 | 10 | 6 |
| Front panel thickness T1 (mm) | 1.0 | 1.0 | 0.8-1.0 | 0.8 | 0.6 |
| Rear panel thickness T2 (mm) | 0.8 | 0.8 | 0.8 | 0.7 | 0.5 |
| Honeycomb core cell size T (mm) | 12-19 | 12-19 | 12-19 | 12-19 | 12-19 |
| Width (mm) | 250-1500 | ||||
| Length (mm) | 600-4500 | ||||
| Panel weight (kg/m²) | 7.8 | 7.4 | 7.0 | 5.3 | 4.9 |
| Rigidity (kNm/m²) | 22.17 | 13.90 | 7.55 | 2.49 | 0.71 |
| Section modulus (cm³/m) | 24 | 19 | 14 | 4.5 | 2.5 |
As a result of our efforts, we have become one of the leading building material exporters and suppliers in China. Shanghai Jixiang Building Materials Group now has over 50 distributors, and we have created four primary brands, ZWM, Jixiang Jiamei, Jixiang Siji, and Jinmu. You can find our decorative construction materials under these brand names in a wide range of countries, including Russia Saudi Arabia, Iran, India, Indonesia, Singapore, and more. So, if you are looking for eco-friendly decorative materials for either interior or exterior building decorations, please contact us.
